Methods of installing the packages which are required for our program
pip install deap
sudo apt install xfoil
A step by step run through running the program in a fast and easy manner

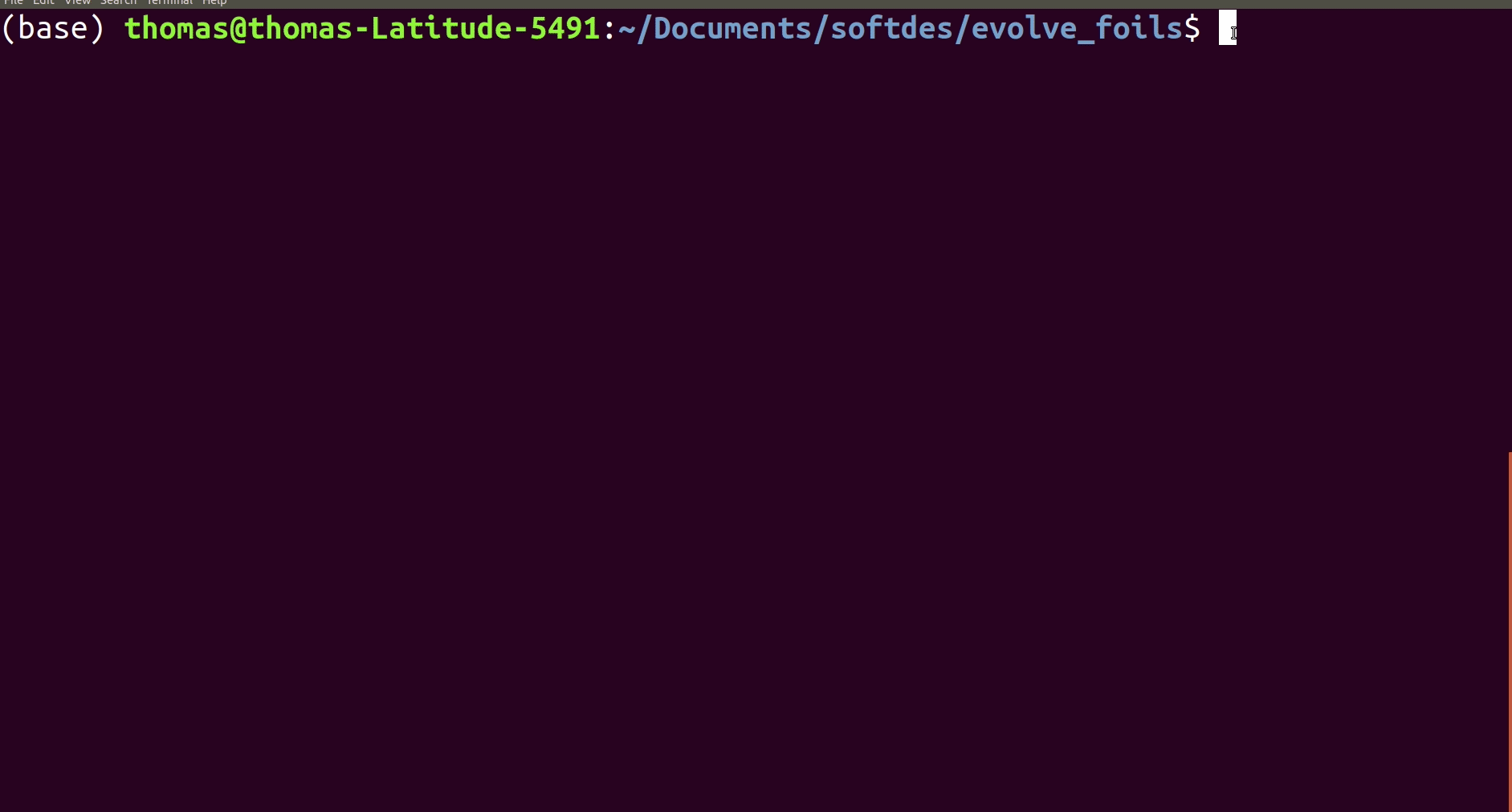

RUNNING THE EVOLUTIONARY ALGORITHM
“python EvolutionaryAlgorithm.py”
- Used to run the evolutionary algorithm and develop the best airfoil
RUNNING THE XFOIL PROGRAM
“xfoil”
- start the xfoil program

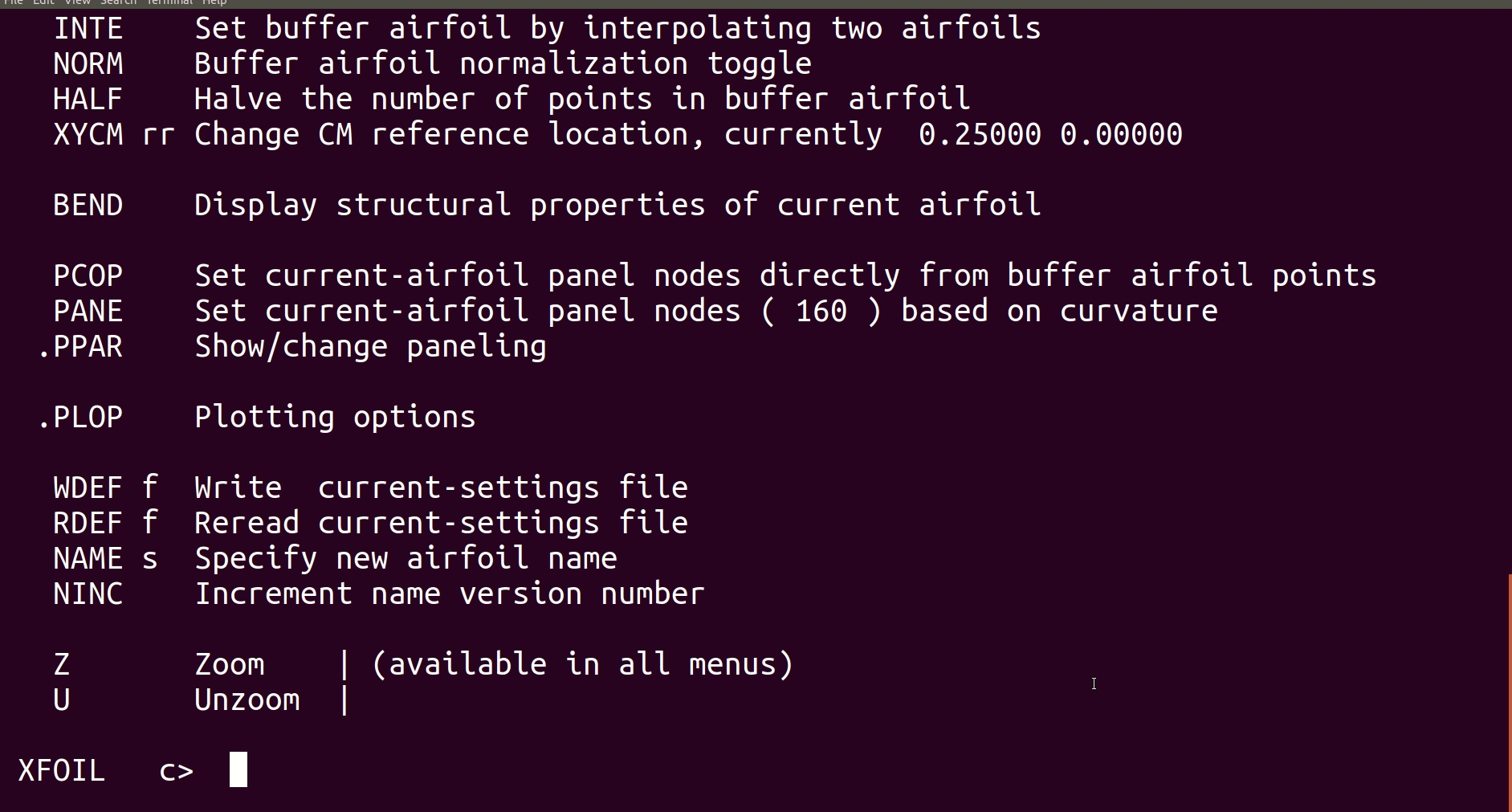

LOADING UP A FOIL
“load sample16-2.dat”
- load the airfoil into xfoil and initialize it “enter”
PANE
“pane”
- Re-panel the foil to improve curvature and flatten out sharp edges

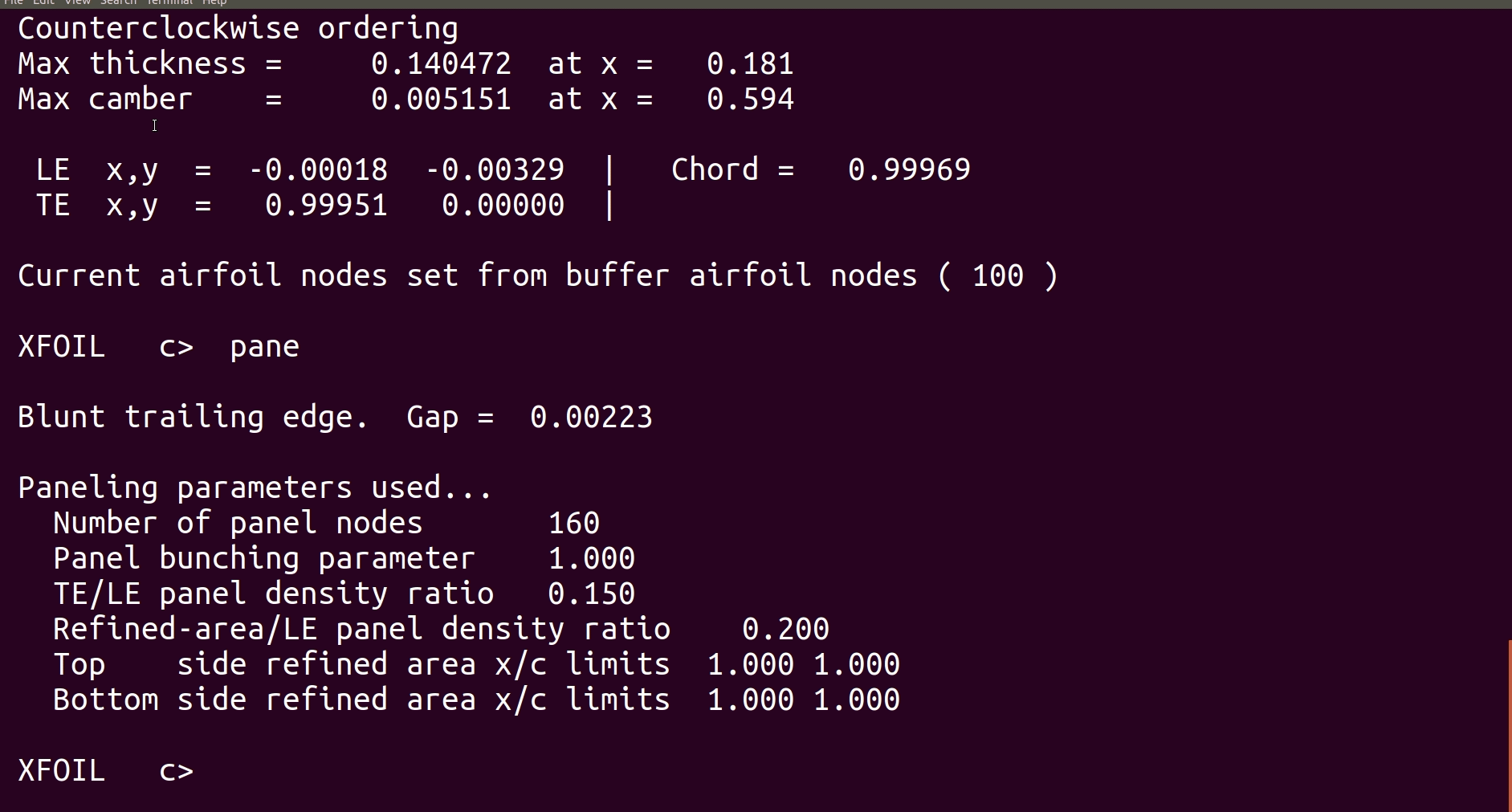

OPER
“oper”
- Open up the operations section of xfoil

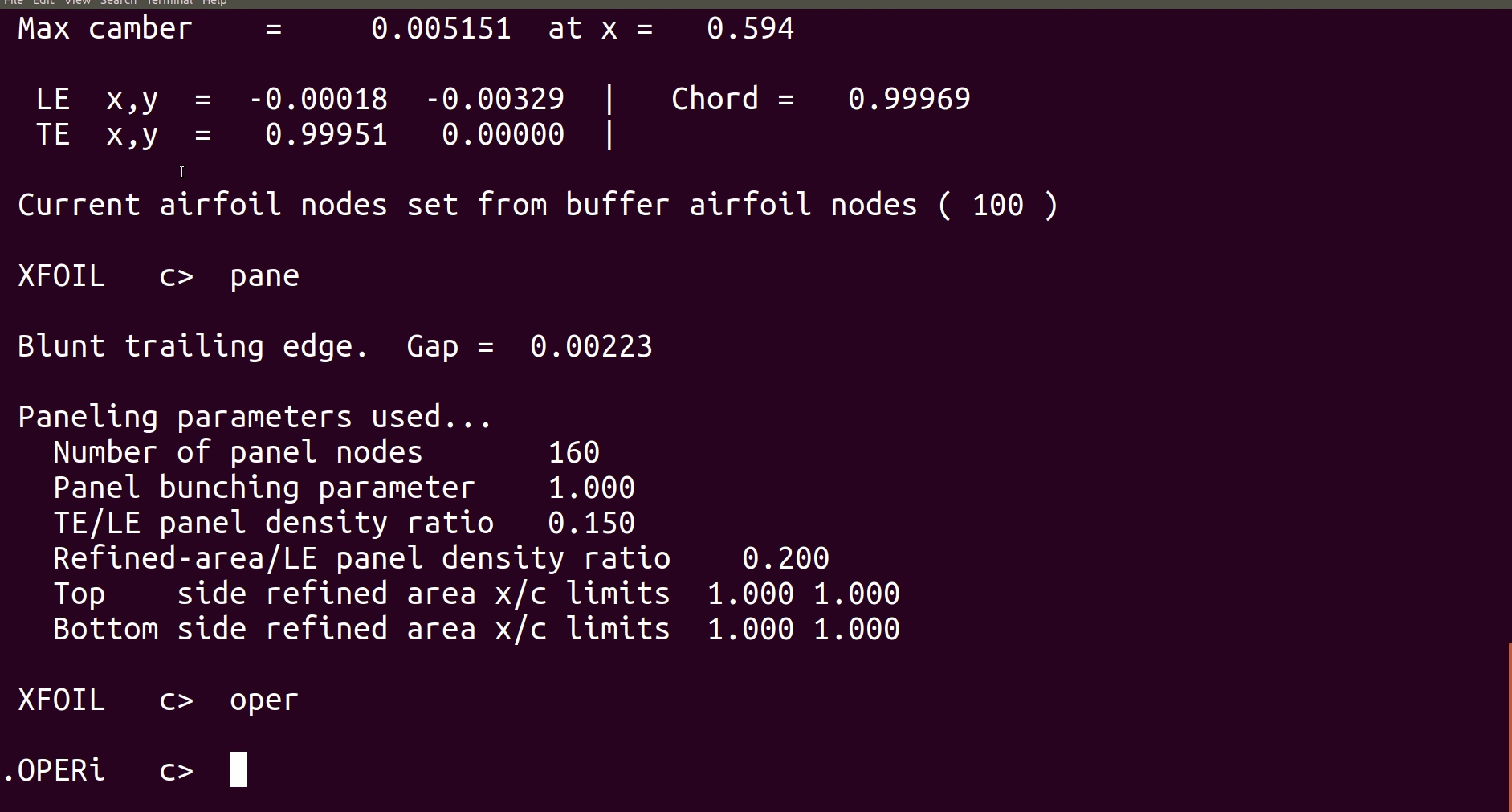

RUNNING A VISCOUS SIMULATION
“visc 2e7”
- run a viscus simulation on the foil with a Reynolds number of 2e7.

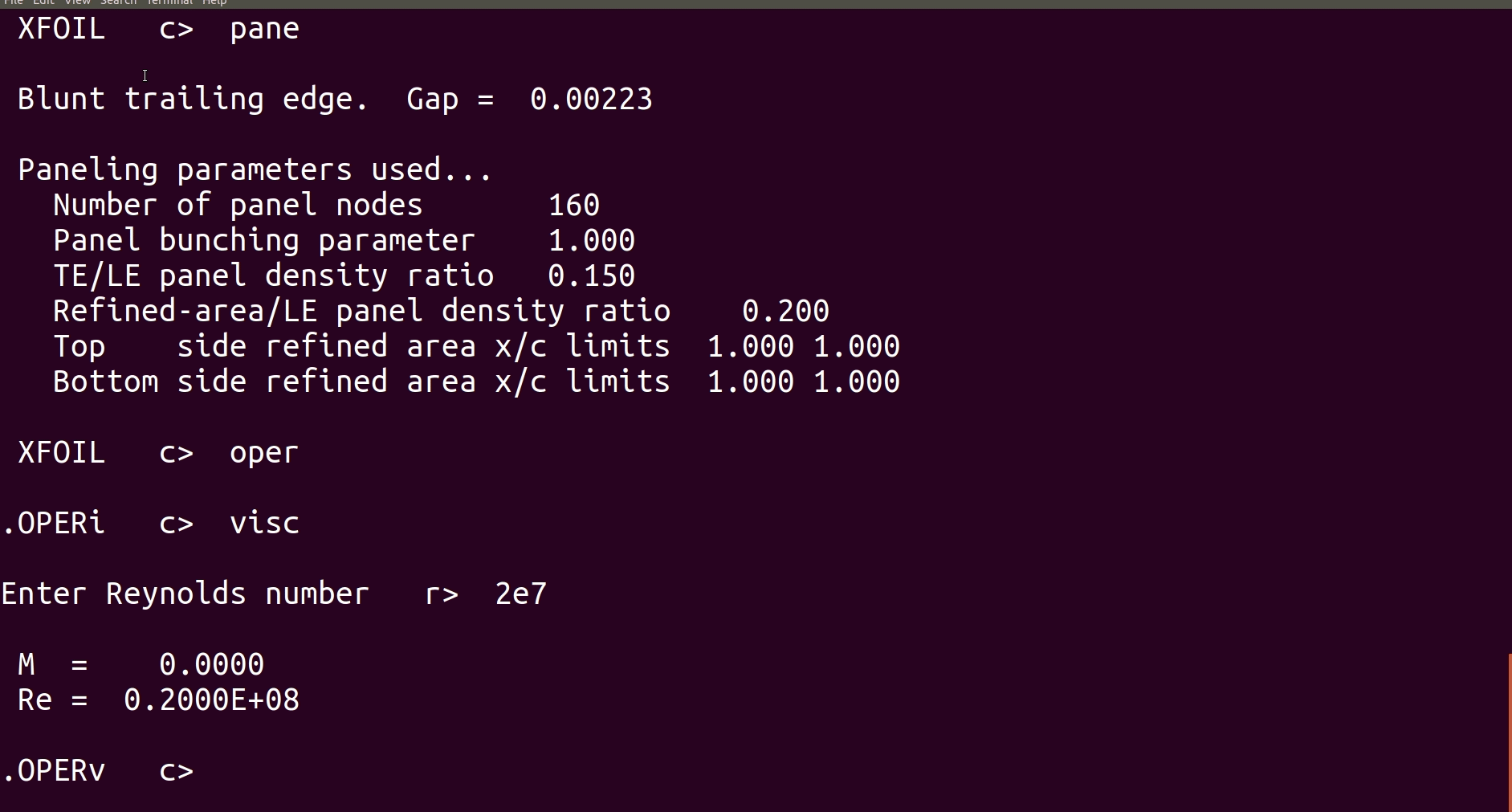

ALPHA
“alfa 10“
- Run a simulation with an angle of attack of 10 degrees.
